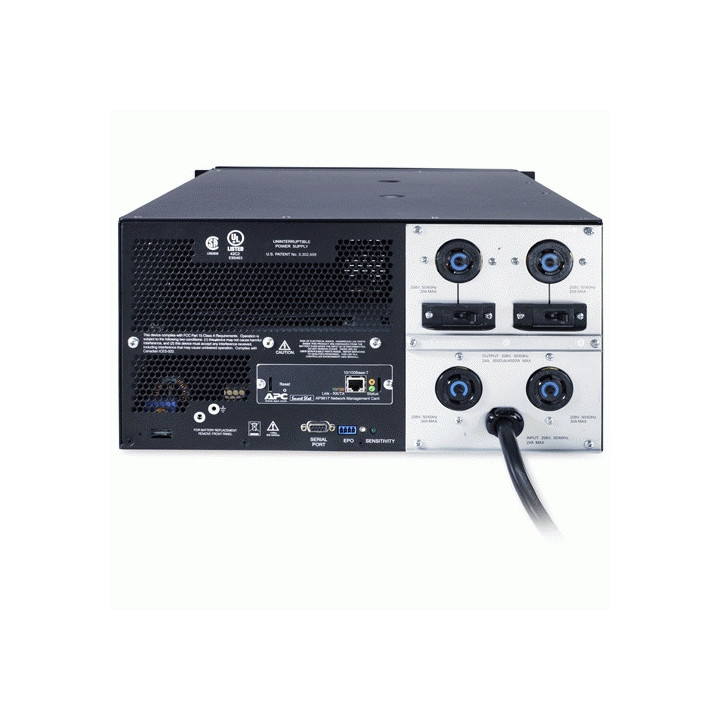

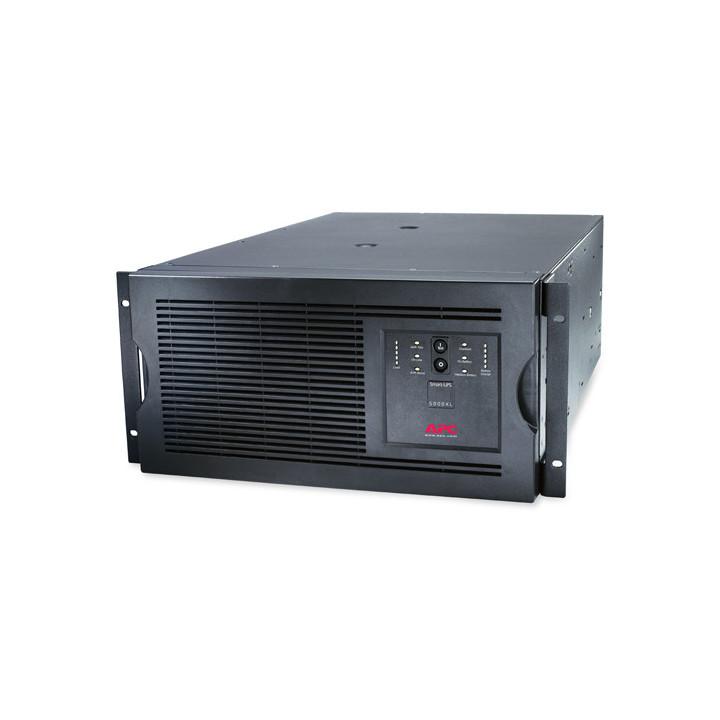

APC Smart-UPS 5000VA alimentation d'énergie non interruptible 5 kVA 4000 W
EAN : 731304255338
Référence : 1818130
APC Smart-UPS 5000VA, 5 kVA, 4000 W, 50/60 Hz, 53 dB, Sealed Lead Acid (VRLA), 9,4 min
5 850,00 €
HT
5 850,00 € TTC
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Resettable circuit breakers
Enables a quick recovery from overload events.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS conditions.
Serial Connectivity
Provides management of the UPS via a serial port.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Network manageable
Provides remote management of the UPS over the network.
Adjustable voltage sensitivity
Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.
LED status indicators
Quickly understand unit and power status with visual indicators.
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Resettable circuit breakers
Enables a quick recovery from overload events.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS conditions.
Serial Connectivity
Provides management of the UPS via a serial port.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Network manageable
Provides remote management of the UPS over the network.
Adjustable voltage sensitivity
Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.
LED status indicators
Quickly understand unit and power status with visual indicators.
-
Temps de secours type à demi de charge26,7 min
-
Temps de secours type au chargement complet9,4 min
-
Connexions de sortie2x NEMA L6-20R
2x NEMA L6-30R -
Puissance de sortie4000 W
-
Code du système harmonisé85078000
-
Poids97,7 kg
-
CertificationCSA,FCC Part 15 Class A,UL 1778, RoHS 7b
-
InterfaceDB-9 RS-232, SmartSlot
-
Alarmes sonoresOui
-
VoyantsOui
-
Bouton de coupure d'urgence d'alimentation (EPO)Oui
-
Type de connexion d'entréeNEMA L6-30P
-
Niveau sonore53 dB
-
Dimensions (LxPxH)483 x 660 x 222 cm
-
Fréquence d'entrée50/60 Hz
-
Tension nominale de sortie208 V
-
Batterie échangeable à chaudOui
-
Tension nominale à l'entrée208 V
-
Température hors fonctionnement-15 - 45 °C
-
Altitude de non fonctionnement0 - 15000 m
-
Altitude de fonctionnement0 - 3000 m
-
Temps de rechargement de la batterie3 h
-
Température d'opération0 - 40 °C
-
Technologie batterieSealed Lead Acid (VRLA)
-
Longueur de câble2,44 m
-
CouleurNoir
-
capacité de la puissance de sortie5 kVA
